Quick Details

  • Condition: New
  • Application: Pipe
  • Plastic Processed: PVC
  • Screw Design: Single-screw
  • Automatic Grade: Automatic
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Horserider/PVC Fibre Reinforced Hose Production Machine
  • Model Number: SJ Series/PVC Fibre Reinforced Hose Production Machine
  • Voltage: 380V 50HZ or CUSTOMIZED
  • Power(W): 15--25 KW/PVC Fibre Reinforced Hose Production Machine
  • Dimension(L*W*H): CAPACITY/PVC Fibre Reinforced Hose Production Machine
  • Weight: 6000kg/Plastic Wire Hose Production Line
  • Certification: CE ISO/Plastic Wire Hose Production Line
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: PVC Fibre Reinforced Hose Production Line
  • Product Diameter: 1 inch -- 6 inch//PVC Fibre Reinforced Hose Production Machine
  • Raw material 1: PVC //PVC Fibre Reinforced Hose Production Machine
  • Motor: SIEMENS Brand/PVC Fibre Reinforced Hose Production Machine
  • Inverter: ABB Brand//PVC Fibre Reinforced Hose Production Machine
  • Main motor: Seimens 15--30KW//PVC Fibre Reinforced Hose Production Machine
  • Warranty: 12months//PVC Fibre Reinforced Hose Production Machine
  • Fibre Winding Machine: 3.5 KW or 5.5KW//PVC Fibre Reinforced Hose Production Machine
  • Usage: Water Pipe//PVC Fibre Reinforced Hose Production Machine
  • Cooling Bath: 4m Stainless Steel//PVC Fibre Reinforced Hose Production Machine

Packaging & Delivery

Packaging Details Seaport Standard Packing
Delivery Time Shipped in 45 days after payment







Product Description



      PVC Fibre Reinforced Hose Production Machine



Application:

This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building.



The Final Product


Parameter:

Item

Description

Data

1

Single Screw Extruder

2 sets



Screw and Barrel Material

38CrMoAlA



Treatment of Screw and Barrel Surface

Nitriding



Heating Mode of Screw Barrel

Cast-aluminium Heating Circles



Cooling Mode of Barrel

Air Blower



Main Motor Power Speed Adjusting

Japan Omron Frequency Inverter



Gearbox Reducer

Hardening Gear Surface,  Low Noise

2

Die Head

1 set or According to Customer’s Need



Specification

5-50mm

3

Water Cooling Tanks

2 sets



Tank Material

Excellent Stainless Steel



Tank Length

2000-3000mm



Tank Thickness

3mm



Water Pump

2 sets

4

Fiber Winding Machine

1 set



Motor

2.2KW



Speed Adjusting Mode

Japan Omron Inverter

5

Hauling off Machine

2 sets



Motor Power

1.5kw*2



No.of Belt

2 *2 sets



Speed Control

Japan Omron Inverter

5

Twin Position Coiler

1 set

6

Main Electrical Components

Omron, ABB, Schneider, Delix, Simens etc.



Torque Motor

2.5-6KN/m

Optional Device



1

Printer

1 set

2

Oven

1 set

3.

PVC Soft Granulating Line

1 line




Model

JDF45

JDF55

JDF65

JDF75

Extruder

SJ45/30

SJ55/30

SJ65/30

SJ75/30

Diameter range (mm)

6-16mm

 8-25mm

12-50mm

20-50mm

Output(kg/hour)

20-40

30-60

 40-80

 60-110

Installation power(kw)

35

42

50

65





PROCESS FLOWS:



SJ-Single Screw Extruder--Water Cooling Tank--Hauling off Machine--Fiber Winding Machine--SJ-Single Screw Extruder--Water Cooling Tank--Hauling off Machine--Twin Position Coiler

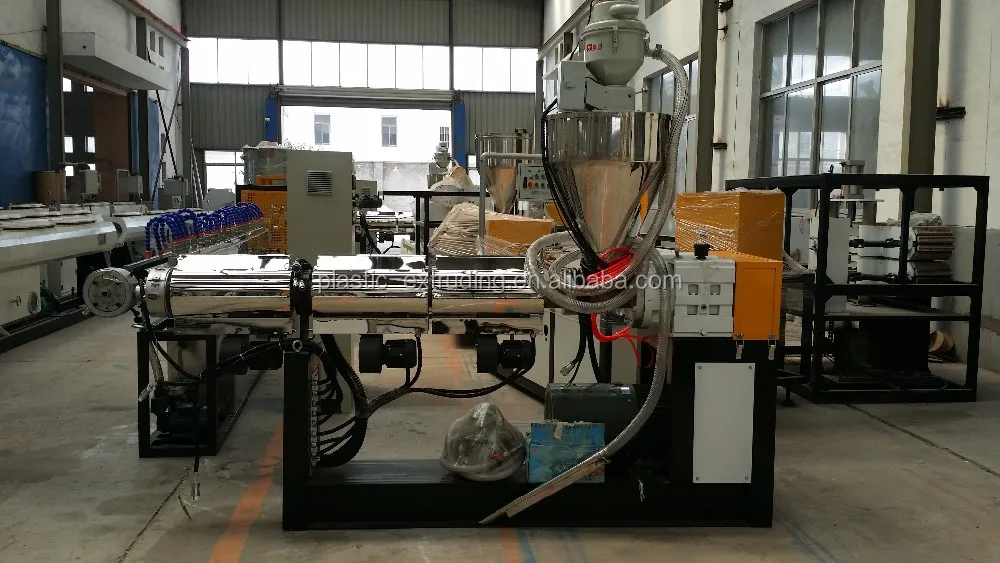

The Extruder

The Die-Mould



Fibre Winding Machine



The Cooling Tank





The Haul-off Machine





The Oven

The Pipe Winder
